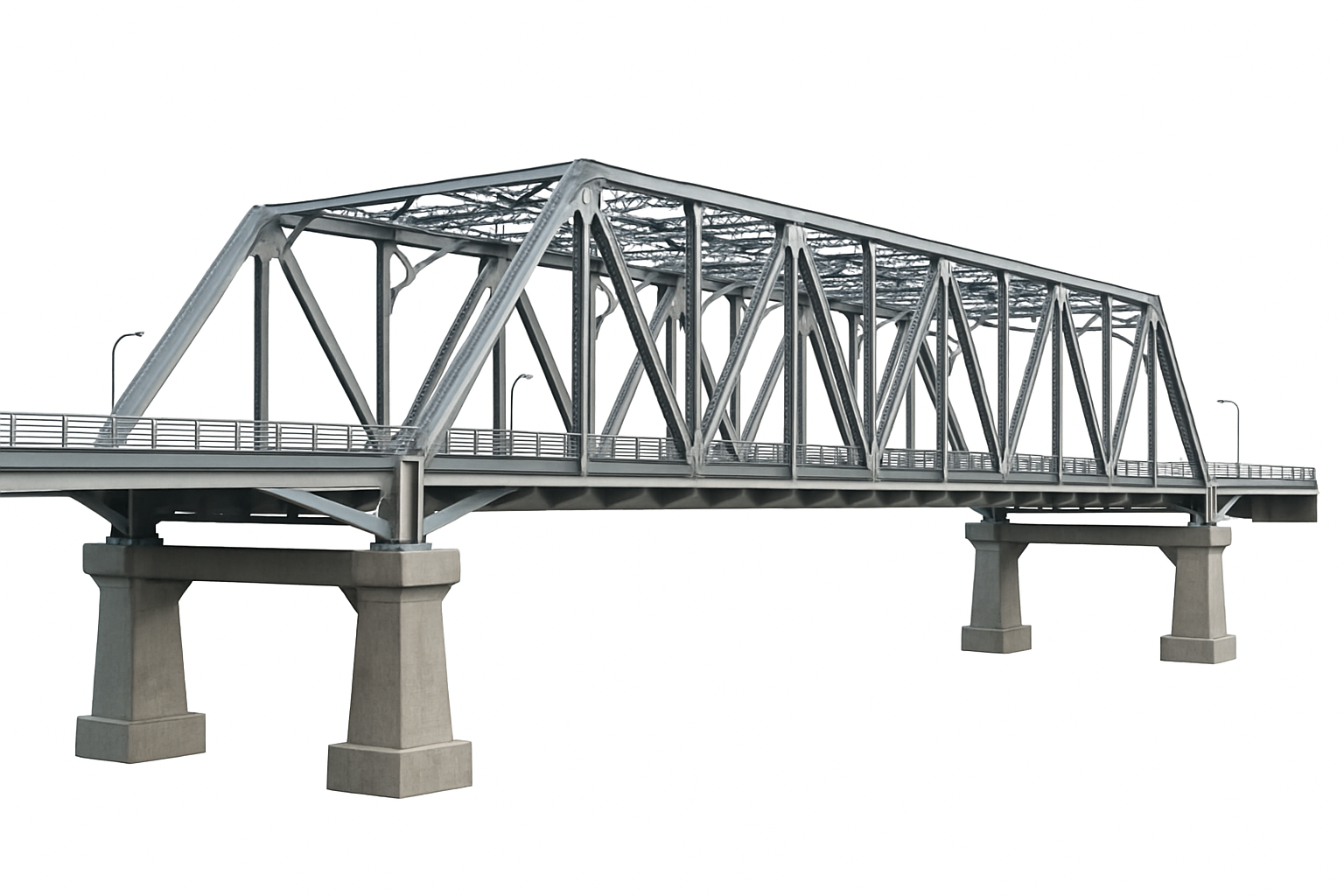

🔩 Advanced Truss Bridge – Engineered for Strength, Built for Performance

The Advanced Truss Bridge is a cutting-edge solution in modular bridge systems, designed for rapid deployment, superior load capacity, and long-term reliability. Utilizing high-strength steel or advanced alloys, these bridges feature a triangulated framework that offers maximum structural efficiency with minimal material use.

The robust truss configuration ensures excellent load distribution, making it ideal for both military and civilian applications, such as temporary detours, rural access routes, emergency relief, and permanent infrastructure projects. Its modular design allows for quick on-site assembly without the need for heavy equipment, reducing installation time and cost.

🛠️ Key Features:

  • ✅ Modular design for easy transport and quick deployment

  • ✅ Exceptional strength-to-weight ratio

  • ✅ Suitable for both vehicular and pedestrian traffic

  • ✅ Designed for heavy-duty use and challenging terrains

  • ✅ Corrosion-resistant finish for longer lifespan

  • ✅ Complies with international bridge standards

With options for both single-lane and multi-lane spans, deck variations, and custom lengths, the Advanced Truss Bridge offers unmatched versatility. Components can be easily disassembled, relocated, or expanded as project needs evolve.

Whether you're bridging remote valleys, restoring access in disaster-struck regions, or creating a durable route for long-term use, the Advanced Truss Bridge delivers the strength of traditional designs with the efficiency and adaptability of modern engineering.

Yes I'm Interested

An Innovative Design of a modular Advanced Truss Bridge (ATB) has been developed that can be quickly deployed across gaps. The ATB is highly efficient and much lighter than the Bailey Bridge. A patent has been granted for this innovative design.

Even though, Bailey Bridges have been used very widely because of their modularity and ease construction, there are certain short comings viz. prone to lateral buckling failure, inefficient structural configuration in double and triple storey constructions as nearly fifty percent longitudinal members end up near the neutral axis of bending.

Advanced Truss Bridge has all the advantages of the Bailey Bridge and has overcome all the short comings of the Bailey Bridge. The ATB can bridge long gaps and can provide comfortable road width. It can bridge longer spans with higher Load Class compared to Bailey Bridge.

The Advanced Truss Bridge is Lighter by 50% compared to Bailey bridge in general, structurally efficient, and easy to construct. It has a unique joint configuration with higher stiffness and stability. A single type of joint configuration and a single type of structural members are used for construction of the Bridge girders. The principle of fractal scaling, an innovative concept of geometrical scaling is used that always results in higher efficiency bridge girders. The deck on top configuration offers higher lateral buckling factor.
